HASEGAWA Ultra Compact P Series Gang Type Lathe

  • Home
  • Our Products
  • Hasegawa
  • HASEGAWA Ultra Compact P Series Gang Type Lathe



  • Description
  • Technical Data
  • Features
  • Video
  • HASEGAWA P Series is a gang type NC lathe of 3 to 5 inch chuck regarded for its flexibility in set up with multi spindle or automation. The P15 has received high appraisal as a micro lathe for precision parts in IT and automobile related industries.

    HASEGAWA P15 Ultra Compact P Series Gang type Lathe HASEGAWA P15

  •

    Item P-15D P-15 P-25
    Max Chuck Size 3” 4” 5”
    Swing Inside Cover Ø150mm Ø150mm Ø200mm
    Swing Over Cross Slide Ø70mm Ø70mm Ø160mm
    Max Spindle Speed 8,000 RPM 12,000 RPM 8,000 RPM
    Spindle Through Hole Diameter Ø20mm Ø20mm Ø35mm
    Spindle Motor AC 2.2/1.5 kW AC 2.2/1.5 kW AC 3.7/2.2 kW
    Tool Post Type Gang Type Gang Type Gang Type
    Max Tool Size Ø16mm Ø16mm Ø25mm
    Rapid Traverse Speed 10m/min 10m/min 30m/min
    Weight 850 KG 900KG 900KG
    Dimensions 550 x 1280 x 1940 550 x 1280 x 1940 750 x 1700 x 2000

  • P Series Gang type Lathe stack



    High Accuracy High Volume — A highly stable machine for high accuracy and mass production components with high repeatability up to 0.1 micron specification.


    Ultra Compact Footprint
     — With a length of only 550mm, the P series has one of the smallest footprint for CNC lathes which allows for maximization of production space.  Each machine can be placed side by side, further reducing required space.


    Automation
    — Hasegawa has one of the fastest gantry loader which allows for reduced cycle time of several seconds during the loading/unloading process.


    Double Spindle Production
     — P series comes with an option of single or double spindle configuration.

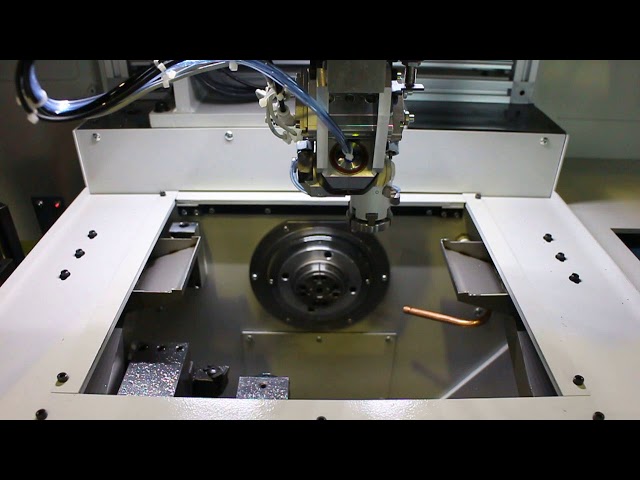

  • YouTube video
